Classes and Class Rules

​

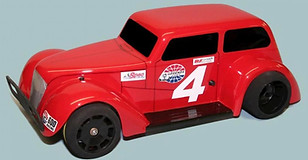

RJ Speed Legends (Charger/Semi-Pro) (2 cell)

​(Updated 8/15/2023)


Charger Class is for NEW novice racers, Semi-Pro is for any

racer with prior R/C racing experience. If you place in the top 3 in 4

or more races in Charger you will move up to the Semi-Pro Class.

​

This class will be run during Oval and On-Road race days.

​

Chassis

1. RJ Speed legends kit only. 1 piece Front Axel Plate (5244) ONLY, **NO 3 piece (5246)**

2. Servo can be mounted in any location in the front of car.

3. No shaving any of the chassis or drilling holes to reduce weight.

4. Only RJ Speed legends chassis parts can be used.

5. Bearings can be used in Charger or Semi-Pro classes. Absolutely NO CERAMICS!

6. Steering rods are OPEN can use stock or Turnbuckles. STOCK steering hubs only!

7. SPEC Gearing. 81-tooth spur. CHARGER is a 16-tooth / SEMI-PRO is a 23-tooth pinion. 48 pitch gears only.

8. No changing of the front springs. Box stock springs only, no altering

9. A bumper must be used. May use the HVRC full front bumper or factory front bumper.

10. All parts must be available for purchase from the RJ Speed website.

11. No (3D) printed parts. No side trays for weight.

12. Rear Axle width: Min: 4.91 in (124.7mm) / Max: 5 in (127mm) This measures from the wheel mount surface side to side. (outside rear hubs) NO EXCEPTIONS!

13. RJ Speed axle and rear hubs only! RJ Speed part #5318 (diff side) and #5314 (set screw side) aluminum hubs can be  used in place of stock. Any other hubs (even if RJ Speed) are illegal.

14. Absolutely NO altering of stock parts

15. Additional Diff balls can be used to utilize the outer circle only (16 max) NO Ceramics!

Body

1. Only RJ Speed full fender legends bodies are legal.

2. No scraping of the body or drilling holes to reduce weight.

3. Must use RJ Speed Legend body cut on the cut lines.

4. Windows must remain intact. No holes or cutting out the windows

5. Body post/mount holes must be punched in the factory marked hole locations.

Tires

Blue, purple or yellow stripe foam spec tire or CRC Track Magnets only. All 4 tires must be either rubber or foam No mixing of Blue, Yellow or Purple tires.

Electronics

1. Any steering servo can be used.

2. Hobbywing Quicrun 1060 ESC only.

3. DYNAMITE 35T Brushed motor (DYNS1216) OR 540 Crawler Brushed Motor 35 Turn (RC4ZE0005) sold at HVRCS

4. Standard size hard case 5200 Mah 2 cell Lipo. 50c max! NO shortie packs!

​

Legend cars are designed to be a SPEC racing class. This purpose of this class is to have very similar cars that run close lap times. If it is not listed on this rule sheet, That means it is probably NOT legal!


TRAXXAS SLASH BOMBER/RENEGADE

​(Updated 8/15/2023)

Renegade is for Novice Slash drivers / Bomber is for Seasoned Slash drivers. The Driver determines the class they would like to race in, the acting Race Director can advise if needed.

Chassis

  1. Traxxas-HCG chassis. Must remain stock.

  2. Shocks- Gray stock kit shocks only. No limiters in or outside.

      1 or 2 hole pistons. May change oil.

 3. Springs- stock White with no altering or cutting.

 4. Wheel hex- Gray in front and black in rear only.

 5. Motor- stock Titan 12T OR BL2s 3300KV Brushless Motor

 6. ESC- Stock Traxxas XL ESC or BL2s (ESC Cooling Fan is Legal)

 Transmission

 1. Stock with no altering of gears. Stock bearings.

 2. Gear- 23 or 16 pinion / 86 or 90 spur only.

 3. Servo- stock servo. Stock servo saver only. No horn.

 4. Tires-  JACO tires (JAC2055LP) only **can be trued** (must keep its FULL WIDTH, it is allowed to round the edges) OR Bandito C2 or C3 compound. Hoosier G60 M3 and M compounds. DE Phenom D30, D40 or Clay compound.

 OR Stock Traxxas tire (may be shaved down to slicks) ***If running foam, all 4 tires must foam, if running rubber all 4 tires must be rubber.

Bumpers

 1. Rear bumper must remain stock and be on vehicle. Nerf wings must be on vehicle.

 Body- 1/8 scale production body. Any body that covers front rear and tires, No wedge or latemodel bodies.

 Battery- any 5200 mah 50c lipo. 8.44 max charge.

 Radio- stock Traxxas with kit.

 No aftermarket or aluminum parts.

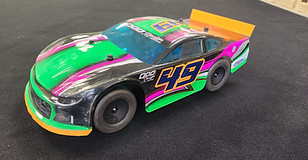

Sportsman 21.5 RTT (Rubber Tire Truck)

**TOUR RULES**
Any 1/10 scale Pan Car Chassis
CRC Rubber Tires (2314 set / 23111 FT / 23142 RR / Blems ok)
eXcelerate WGT-R Pre-Mount Rubber Tire Set (CM/CS) XCE-3077
1s Battery 4.22v max, ROAR Approved & Label must be clearly visible
Batteries 90 degrees Max Temp
NO receiver packs
TOUR USGT 21.5 Spec Motor only (GRC2010)
ESC any 2s with booster or 1s
Blinky Mode; NO boost OR additional timing, must be able to provide the programmer/tuner to confirm if in question.
OPEN Gear 48p or 64p
OPEN Servo
OPEN Radio
39oz minimum weight
5mm ride height minimum
BODIES: - Protoform RT-C Body (Part #1239-25) / MON-TECH Racing DEGA 2.0 Oval Open Body. (TMB0220101). Rear of body only trimmed as high as the trim line. No air relief holes above the trim lines in the rear. (i.e. leave rear of body in).

Tamiya TT

This class will be run during on-road and oval race days.


Tamiya TT is designed to be an entry level class for beginners to get into on-road racing at a low cost with a platform that is easy to work on and has limited tuning options to worry about. This objective of this class is learning to drive and race other drivers and not about the fast part/adjustment of the week. Experienced racers who wish to join this class are encouraged to use their experience and knowledge to help the beginners for whom the class is intended. Searching for gray areas and ways to exploit the rules for a speed advantage is highly discouraged and may result in your removal from the class.


RULES: Tamiya TT-01 and TT-02 kits only Battery: Any 2 cell hard cased LiPo battery, maximum 8.44 volts
ESC: Any brushed speed control with any battery connector, must have the Tamiya bullet connectors for motor hook-up, no direct soldering the motor.
Motor: 23 turn Tamiya RS-540 Torque-Tuned Motor Part (TAM54358)

Gearing: TT-0161T spur and 22T pinion part# 50357. TT-02 70T spur and 25T pinion part# 50477.

Shocks: Kit friction dampers or Tamiya plastic CVA oil filed shocks. Springs: Kit or CVA chrome springs only. All 4 springs must be the same.
Body: Stock 1/10 scale lexan car body that is a close facsimile to an actual production vehicle. NO touring car bodies!
Tires: Stock kit tires or optional Gravity spec USGT tires only.
Ride Height: Minimum 6mm with a droop minimum of 10mm. Droop will be measured by placing the chassis on 10mm blocks and all 4 tires must maintain contact with the surface the blocks are on. This rule is to minimize the number of limiters in the shocks and to maintain suspension movement.

Differentials: Stock gear differentials only, no sealed gear or ball dills. Grease only in the differential, diff action must be free and easy, NO locked differentials.



No extra added weight



Optional Part Upgrades: TAMIYA and YEAH Racing Option parts that are legal: Bearings, Tamiya plastic CVA shocks, 53619, 50746, 54753 Tamiya Aluminum wheel hex's Part tt's 53569, 53570, 53823 Tamiya aluminum motor mount 11-01 53666, TT-02 54558 Tamiya aluminum propeller shaft: TT-0153620 TT-01E 54026, TT-02 54501, 54502, Tamiya universal sets: TT-01 53790 & 53792,1-T-02 54477 & 53792 Tamiya Aluminum steering set: TT-0154058, TT-02 54574, 54575, 54752 Tamiya turnbuckle set: TT-0153662 Any servo saver or solid servo arm (servo saver is recommended over the solid arm) Screws may be replaced with better hardware. Motor heatsinks are allowed but absolutely not necessary.



Recommended option parts are bearings and the plastic oil filled shocks.


5.5 BREAK OUT

(4-20-25) This class will be run during oval race days.

​


The Rules are simple, don't go faster the the set Breakout time set or that lap does not count.

​

****These rules are TENTATIVE and subject to change at any time.****

CHASSIS: ANY 1/10 scale 2WD/ FWD/ 4WD **NO PAN CAR CHASSIS
SHOCKS / SPRINGS: OPEN
DRIVE TRAIN: OPEN
ELECTRONICS: OPEN
SERVO: OPEN
GEARING: OPEN spur and pinion 64 or 48 pitch
BATTERY: Open
/ 8.44v MAX (this is a track rule)
RADIO: OPEN
BODY: Any 1/10 scale body
TIRES/WHEELS: Rubber or Foam / NO PIN TIRES

​

​


​


Zer0 Mod Bandit

​

(6-15-23) This class will be run on oval race days.


Based on the latest Traxxas 2WD Bandit chassis, the basic kit has 80% of what you need to get started in this class. You will also need a Zero Mod Wingless Sprint Body for $50-$60 (available at HVRCS) with over 12 colors to choose from no 2 will look the same. You will have to add your choice of the 4 spec tires options (see rules below) we will run. **REMEMBER** If it’s not specifically listed in the rules, then it’s likely not allowed.  Our rules are NOT here for you to work the gaps or push the limits, they are here for another fun class.  NO shenanigans!

​

****These rules are TENTATIVE and subject to change at any time.****


CHASSIS… Traxxas 2wd Bandit Chassis ONLY

​

BODY… TQ’s Zer0-Mod Bandit Wingless Sprint Body (783 or 783F) - NO WING(s)

​

MOTOR / ESC… Traxxas Titan 12T MOTOR and XL-5 stock ESC only

  • ESC and MOTOR MUST have Traxxas MOTOR/BULLET Connectors

  • ESC MUST be mounted on the Factory ESC Mounting Plate

  • Any battery/ESC connector



GEARS… Traxxas Spurs ONLY 76, 83, 86, 90 & any pinion

​

BATTERY… (must remain in original battery tray) *Any 2s 7.4v LiPo, 5200 50c 8.44v MAX (NO LPHV)

​

SHOCKS… Traxxas Stock ONLY (Ultra Shocks)

  • Travel Limiters are allowed, Shock Limiter Eliminator by Team QIK is allowed.

  • Traxxas Stock BANDIT SPRINGS ONLY (2458 & 2457)

  • Shock Oil of your choice

  • Traxxas Ultra Shocks

  • Box Stock Shocks and Springs

  • Traxxas Front Shock 3760 (3760A gray, 3760 black,etc) included springs are NOT ALLOWED

  • Traxxas Rear Shock 3762 (3762A gray, 3762 black, etc) included springs are NOT ALLOWED

  • Traxxas Front Springs 2458 (2458, A, P, etc)

  • Traxxas Rear Springs 2457 (2457, A, P, etc)



RADIO… Your Choice (MUST be mounted in RECEIVER BOX)


SERVO… Traxxas STOCK Servos ONLY (if it’s made by TRAXXAS and mounts without modification, it is allowed) - 2075 (Stock Servo), 2075X,  2075R, 2255, etc…

​

LINKAGE… Traxxas Bandit Adjustable Linkages are allowed


TIRES... LIMITED TIRE / WHEELS you may run foam inserts. All 4 tires must match.

  • Any Buggy Wheel

  • Traxxas Street Slick REAR 3470/ Street Slick FRONT 3471

  • Traxxas Anacondas REAR 2478 / FRONT 2479

  • RAW Speed Slick REAR 161101CB / FRONT 161102

  • Associated SR10 Street Stock REAR ASC71195 / FRONT ASC71194



BEARINGS… Traxxas Bandit/Slash Bearings, Carriers & HEX Adapters are allowed / NO CERAMIC BEARINGS

​

DIFFERENTIALS... Stock gear differentials only, no sealed gear or ball dills. Grease only in the differential, diff action must be free and easy, NO locked differentials.

​

Traxxas Aluminum Ultra Shock Caps (3767A, P, G, X, T, etc)

 Internal Shock Limiter(s) of your choice

Traxxas Front Bearings 5x11x4 (5157) or 5x8x2.5 (5114, 5114A)

Traxxas Steering Blocks (VXL) (3736)

Traxxas Hex Adaptors (1654 black, 3654 gray)

Traxxas Aluminum and upgrade/option parts… if the first 4 numbers of the upgrade/option part

matches the original part number, then it is allowed. This is better known as the MSM rule!

3636 steering blocks

3632 caster blocks

2532 tie bar, fiberglass

NO ADDED EXTRA WEIGHT

​


5.0 Pan Car Break Out 1/10 Scale

​

(8-15-23) This class will be run on oval race days.


The Rules are simple, don't go faster the the set Breakout time set or that lap does not count.

​

****These rules are TENTATIVE and subject to change at any time.****

CHASSIS: ANY 1/10 scale Rear wheel drive Pan Car Chassis
SHOCKS / SPRINGS: OPEN

DRIVE TRAIN: Direct Drive / Straight Axle Diff
ELECTRONICS: OPEN
SERVO: OPEN
GEARING: OPEN spur and pinion 64 or 48 pitch
BATTERY: Open
/ 8.44v MAX (this is a track rule)
RADIO: OPEN
BODY: Any 1/10 scale oval Car OR Truck body
TIRES/WHEELS: Rubber or Foam

Minimum Ground Clearance: 4mm

​



1RC Late Model General Rules

(10-1-23)
All Late Model Cars must be complete cars with all bodywork, faux engine,driver figure and the like.
Cars should have a number on each side of the body at a minimum.


Taping or gluing the the right front tire is okay and the track rule is Tire Prep IS okay.
We reserve the right to inspect all parts of the car including a complete tear down if you podium.


Simple low to no cost mods allowed: These mods have been shown to improve the consistency and drive-ability of the car, especially when using a Lipo battery. If you need assistance performing these mods ask a fellow racer or track official.
Venting shocks by drilling cap permitted and recommended.
Adding lube (Green Slime) to the shocks internal o-ring (OPTIONAL).


Class: Sportsman
Chassis: 1RC Box Stock
Battery: 2s 300mah 80c or less lipo with 6v UBEC Hobbywing regulator or 1RC Box Stock 5 Cell
Radio: 1RC Box Stock
ESC/Rx: 1RC Box Stock
Servo: 1RC servo only (1RC7020) or (1RC7017)
Motor: 1RC 8700kv w/10T Pinion 9300KV MAX MOTOR MUST BE TECHED and labeled
Gears: Stock LM gears Only (1RC4001) (no mixing of gears)
Suspension: Stock Silver Springs and Plastic shock only C-clips are legal.
Tires: Any 1RC Late Model (treaded/studed) HARD or SOFT Tire
Body: Any 1RC Body must be complete with all bodywork for that body, faux engine,driver figure and the like.


Class: LIMITED Late Model (Lipo) - Same as above except:
Battery: Any 2s 300mah 80c or less Lipo
Motor: 1RC 8700 Brushless Motor w/ 10T Pinion 9300KV Max (NO MOTOR TAMPERING / The motor can not be opened/glued/ shimmed or resealed for any reason this includes the motor wires going into the motor. Any motor that resembles tampering will not be legal and will be disqualified) ****Subject to PRE and POST TECH at the Race directors discretion. MOTOR MUST BE TECHED and labeled
ESC: 1RC 1RC7014
Radio/Rx: Open/Any
Mods Allowed: Any 1RC option part for the Late Model (Except the 10,000 kv Motor 1RC7011)
All parts must be installed in their intended location and used as intended.


Class: MODIFIED Late Model (Lipo)
Battery: Any 2s 300mah 80c or less Lipo
Motor: Any 1RC Motor 8700KV or 10,000KV w/ OPEN Pinion
ESC: 1RC 1RC7014 ONLY
Radio/Rx: Open/Any

Servo: ANy/OPEN
Body: Any production 1RC body that covers the wheels and must be painted.
Mods Allowed: Any 1RC option part currently available.


**All parts must be installed in their intended location and used as intended.

Vintage Pan Car General Rules

(9-10-24) This is a low budget class for older pan cars, the rules are simple and easy to fallow.

Chassis: Any round cell, solid axle pan car chassis 15 yrs older min. from today. Fiberglass or carbon fiber chassis is ok. The slots must be factory cut, Slider slots /solid slots are ok. No solid chassis as these were introduced around 2008.
Battery: LIPO- 2S - Any 5200mah 50c 7.4v hard case OR 2S 3000mah 30c 7.4v REEDY WolfPack (#758) 8.44v max.
Radio: OPEN
ESC: HobbyWing 1060 ECS only. Motor must use bullet connectors, Must use a battery connector.
Servo: OPEN

Radio: OPEN
Motor: INJORA 45t closed endbell Brushed motor OR RC4ZE0004 540 Crawler Brushed Motor 45t

****This class now includes a motor buyout clause****

#1 - $25 to buy the Motor, cash only on the spot

#2 - You MUST do the call out before the next race starts or with-in 2 mins if it was the last race of the evening. Tell the race director or TECH, confirm that they heard and understand you.

#3 - Only valid in the A main

#4 - Finisher #2 can buy #1, #3 can buy #2, #4 can buy #3 and so on. #3, #4, #5 can not buy #1. You mush finish behind the driver to buy the motor.

#5 - If you refuse, you will be DQ'd and banned from that class indefinitely.

​

Gear: Single shock chassis - 81t 48p Spur / 22t 48p pinion / Triple Shock chassis 81t 48p Spur / 21t 48p pinion
Suspension: Single (Mono) shock rear pod (side damper tubes aka "swizzle stick" is okay) front suspension must have springs and move freely through the range of motion. Triple Shocks must use springs and have movement.
Tires: BSR Yellow Stripe Tires (F4003, set of 4) (2520FR - 2530RR) Legends tires and wheels
Body: Any lexan 1970's and older body (in or out of production) Window must be left clear

Weight: Minimum weight of all cars must be 1150 grams on the track scales.

Bearings: Metal bearings only, no ceramics

Added Weight Okay to come up to race minimum.


​**All parts must be installed in their intended location and used as intended.

25.5 Super Truck Rules

(9-3-24) This is a mid grade pan car class with NASCAR Truck style bodies


Chassis: Any pancar chassis

Body: This class requires a NASCAR style Truck body. Rear of body only trimmed as high as the trim line. No air   relief holes above the trim lines in the rear. (i.e. leave rear of body in). 1.5" spoiler max (no side dams attached)
Battery: 2S Lipo / Any mah / 130c max 8.44v max
Radio: OPEN
ESC: Hobbywing Xerun XR10 Justock 1/10 Sensored Brushless ESC (HWA30112005)

Motor: Hobbywing 25.5 1600KV Justock brushless motor (HWA30408013)
Servo: OPEN

Radio: OPEN

Gears: Open (48 or 64p) Spool or Diff okay

Weight: Minimum weight of all cars must be 35oz (992 grams) on the track scales.
Tires: CRC OR
eXcelerate Rubber Tires ONLY:



​Added Weight Okay to come up to race minimum.
​​

LOSI NASCAR - BOX STOCK

~These rules are tentative and subject to the race directors or tech revision at any time.~
There is a Motor Buy out rule in place: **Motor: Stock 28T 380 Black motor only (LOS1907) , Must use bullet connectors on motor and ESC. May use optional Motor Heatsink (LOS1920).
#1 - $20 to buy the Motor, cash only on the spot
#2 - You MUST do the call out before the next race starts or with-in 2 mins if it was the last race of the evening. Tell the race director or TECH, confirm that they heard and understand you.
#3 - Only valid in the A main
#4 - Finisher #2 can buy #1, #3 can buy #2, #4 can buy #3 and so on. #3, #4, #5 can not buy #1. You mush finish behind the driver to buy the motor.
#5 - If you refuse, you will be DQ'd and banned from that class indefinitely.
Losi Nascar Chassis only, no cutting or trimming of the chassis. No adjustable caster/camber/steering rods on the car (Box Stock)
Gear: 17t, 18t or 19t (48p) pinion / 59t Spur ONLY. **A hole will need to be drilled in the Top Deck in the Motor area to confirm the gear sizes.
ESC: Stock,  SPMXSE3025RX Only
Servo: Box Stock - 20t spline SX108 Micro Servo
Battery: 8.44v max original Spectrum 1400mah 30c battery only. (SPMX142S30H2)
Tire: Any Losi 1/12 Nascar tire (Soft or Medium) in any configuration.  LOS-1937 SOFT or LOS-1914 MED
Body: Losi Nascar Chevy, Ford or Toyota only, Must have numbers on the roof and each side. Must use stock Spoiler, body must be cut on the factory cut line, rear can not be cut out. Must use Stock Bumper, Splitter and Diffuser. No body scraping on the carpet!
Radio: Stock out of the box
Weight Min: TBA
Shocks/Springs: Box Stock, may change fluid / internal shock limiters are okay
Diffs: Stock, front and rear must rotate with minimum effort, may add fluid, no one way bearings.
Metal Bearings only, NO CERAMICS!
Mods: NONE. This class is intended to be a entry level to intermediate cost effective way to get into Oval or On-Road Carpet racing.

© 2023 by High Voltage R/C Speedway

bottom of page
